Armourdillo Hard Shell Rooftop Tent

Crossbar dybamic load rating: 100kg+

Minimum crossbar length: 100cm

Recommended distance between bars: 90cm- 110cm

Minimum distance between crossbars: 75cm

Works with all crossbar shapes

This set-up will support 300kg when parked

We do not recommend using clamp-style roof rack systems that mount to the door jam to support your rooftop.

Step by step instructions

Mounting your tent to your roof racks is easy, but you’ll need at least two people to lift it. We recommend mounting the tent from the back of your vehicle to reduce the risk of scratching it. The tent's thinner “pointy” end should be facing towards the front of your vehicle.

Ideally, you want two people to lift at the front and two at the back.

Grab the bottom panel and lift to your waist, then your shoulders, then above your head.

Gently slide the tent onto your roof rack/bar system and ensure it’s aligned correctly.

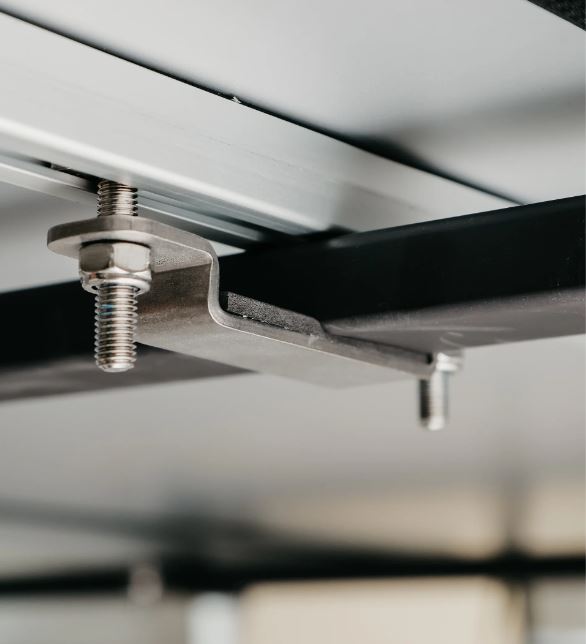

Insert two square-headed bolts into the rail under the tent and slide them along so there’s one on each side of your crossbar.

Attach the bottom bracket under your crossbar, fitting it over the two bolts.

Attach one nut on each bolt and tighten them using the 17mm spanner provided. Make sure to tighten them at the same time.

Repeat steps 4-6 for the remaining three brackets and your roof tent should be securely set-up and ready to go. Check out the Tech Talk video below for simple instructions on opening your roof tent, using the telescopic ladder, and erecting the tent canopy. For more details, refer to the instruction manual that comes with the tent or the digital version above.

https://www.youtube.com/watch?v=GAOgBjJMswE

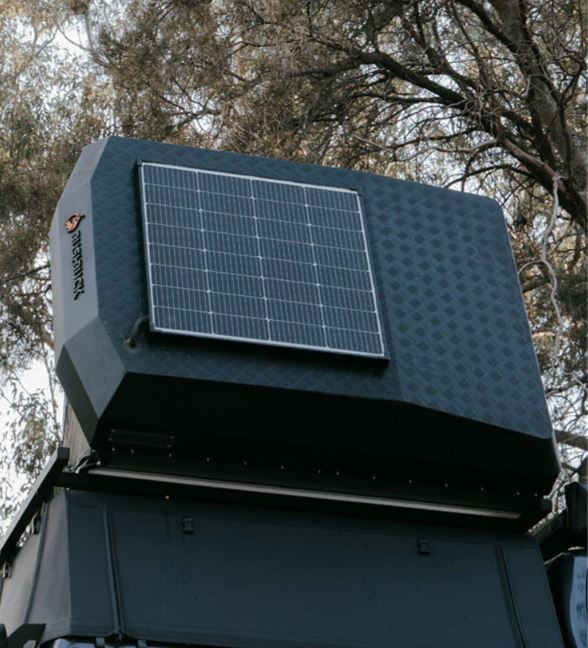

Robust Aluminium Hard Shell Lid:
Crafted from 3mm thick aluminium, each hard shell lid is custom engineered and fabricated with precision using specialized bending tools. Note that due to the handcrafted process, minor blemishes may be present.

Waterproof Mattress:

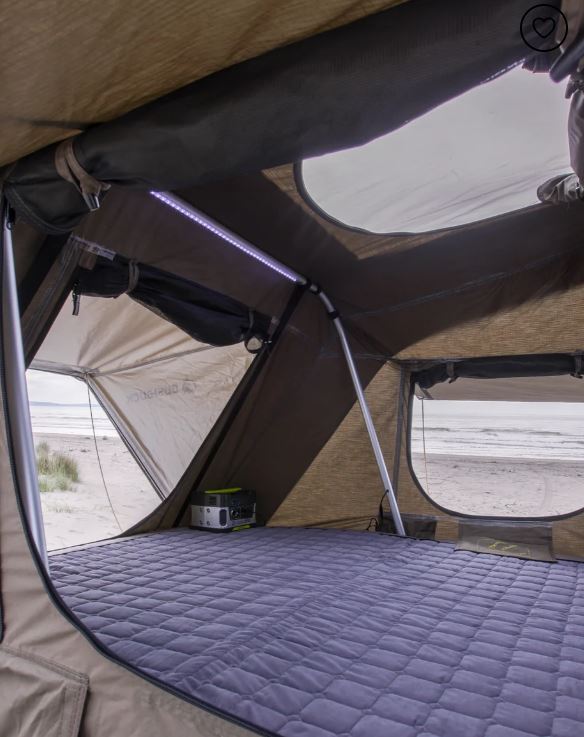

Experience superior comfort with our hybrid laminated mattress, combining 20mm of high-density foam with 30mm of luxury comfort foam. It’s encased in a 300D Oxford lining and padded with 140g of cotton insulation for enhanced waterproofing, and comes complete with a waterproof slipcover.

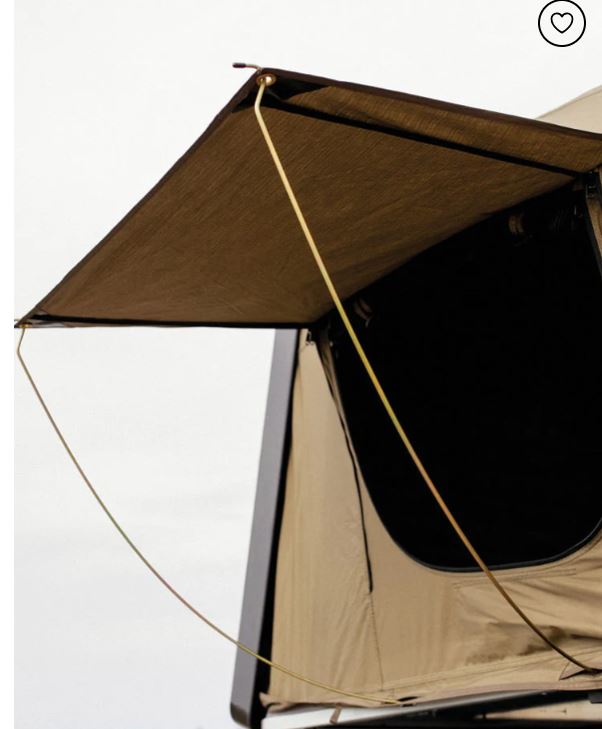

Rain Fly/Cover:
Made from 210T Ripstop Oxford fabric, the rain fly features a 3000mm waterproof rating and an antibacterial silver membrane to keep you dry and protected.

Main Tent Fabric:
Constructed from 280gsm poly-cotton canvas that is seam-sealed, offering a reliable 2000mm waterproof barrier.

Additional Features:

Mosquito Mesh: Lightweight at 130g for effective insect protection.
YKK Zips: Ensuring durability and smooth operation.
Air Vent: For improved airflow and comfort.
Skylight Window: Made with TPU UV50+ material for excellent UV protection.

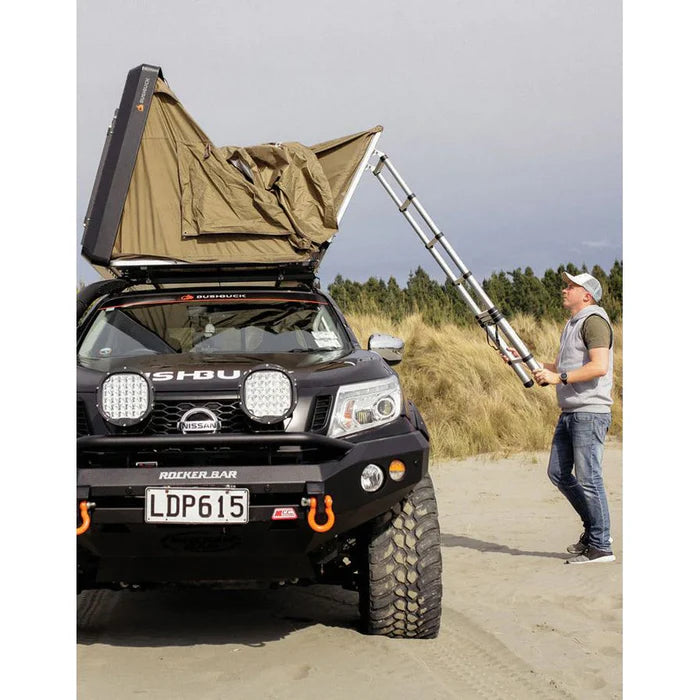

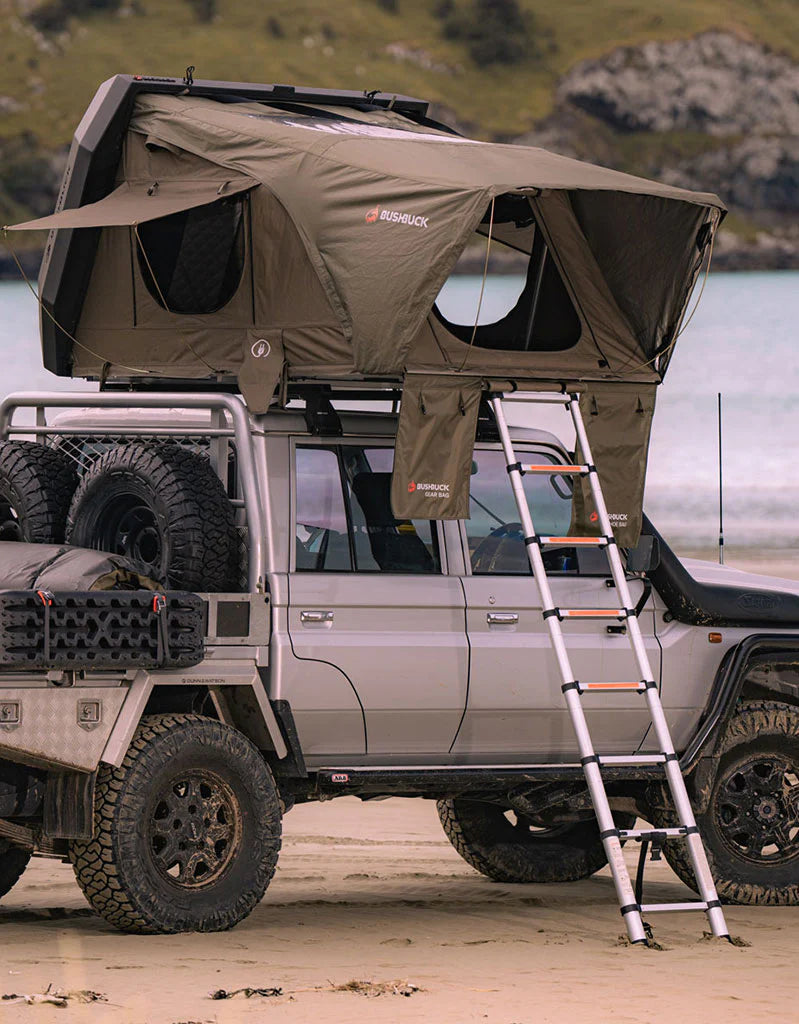

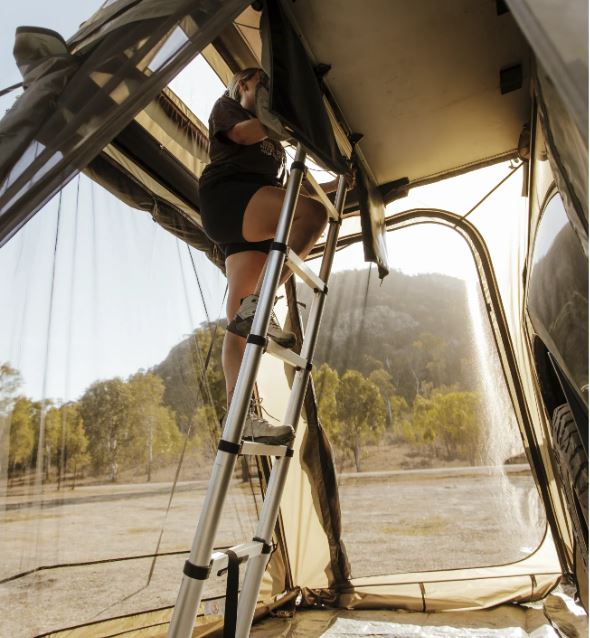

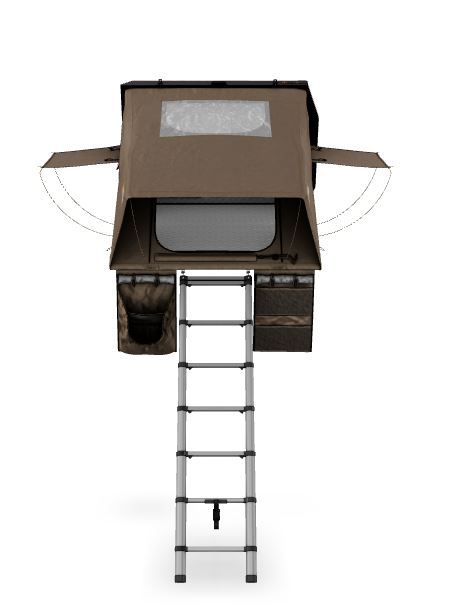

Ladder: A 2.3m telescopic aluminium ladder equipped with a protector for safe and convenient access.
Floor/Base: Built from ultralight honeycomb aluminium—the same material used in the aircraft industry—delivering strength without extra weight.

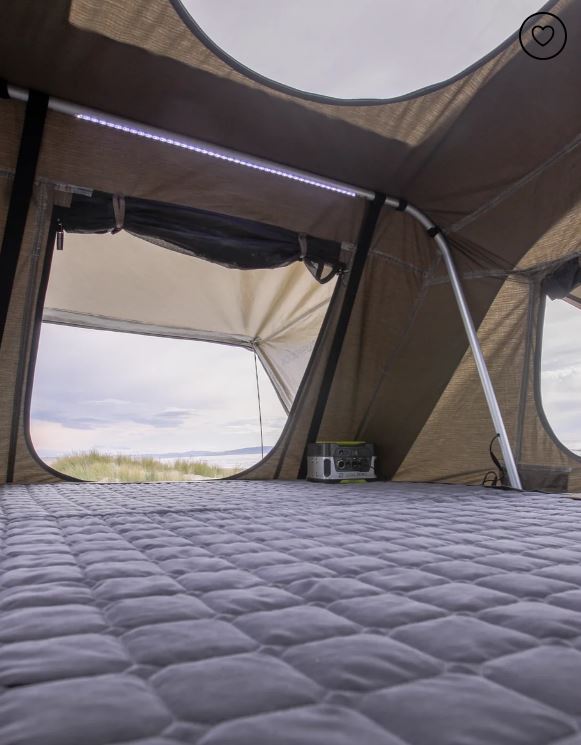

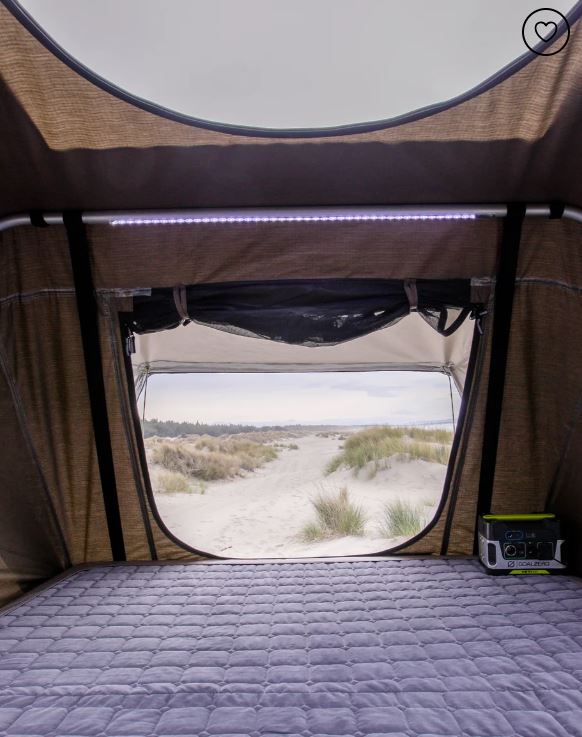

LED Strip Lighting: Interior and exterior LED strips are powered via USB power bank (compatible with solar panels) and feature an easy-to-use switch.

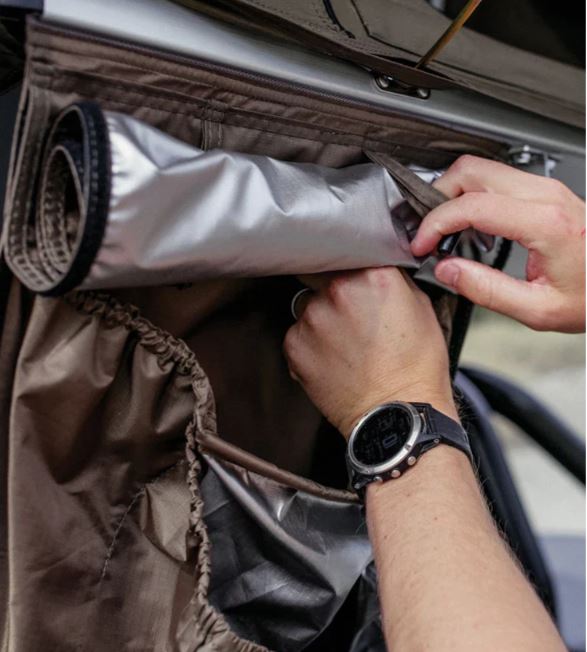

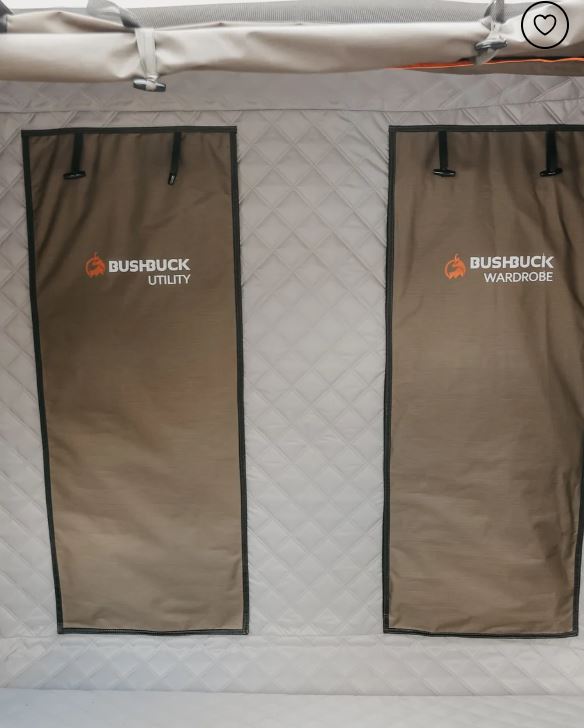

Shoe Bag: Features an exterior PVC liner with two extra-large shoe pockets secured by a Velcro sealable cover.

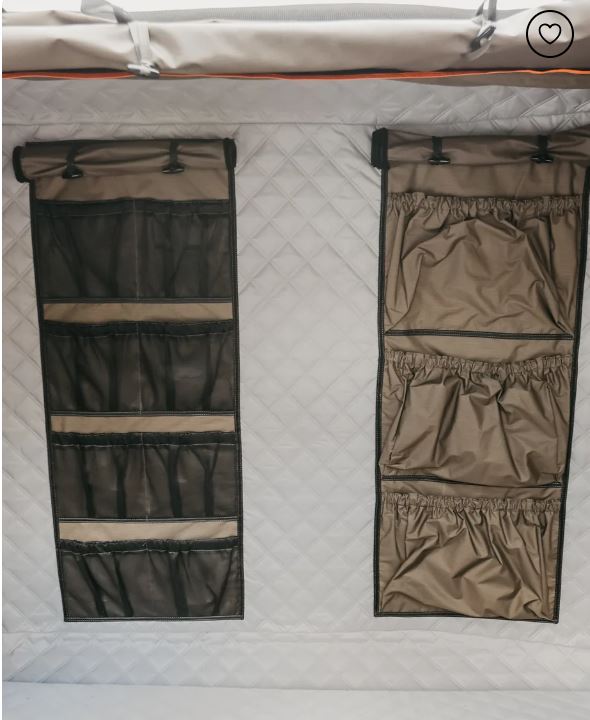

Gear Bag: Includes an exterior PVC liner and four large mesh pockets with Velcro closures for secure storage.
Vehicle Mounting Rails: Comes with attachments designed to fit most standard roof racks.

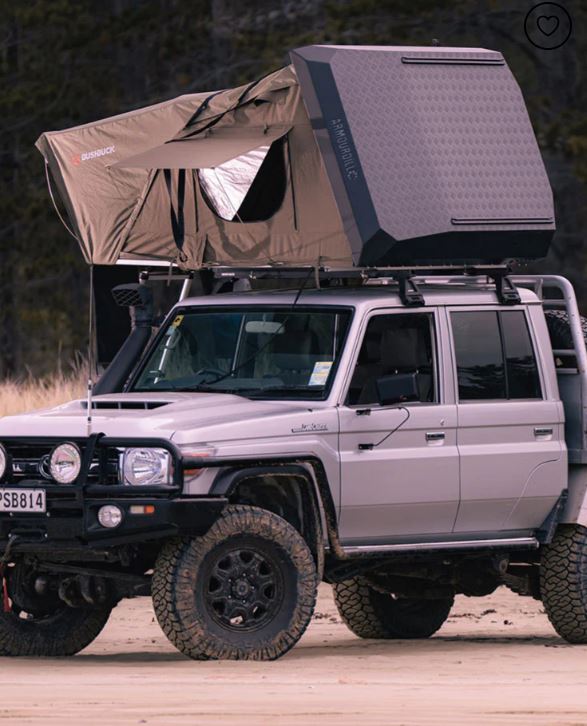

Side Clam-Shell Opening: For easy access and convenience.
Rubber Dust Seal: Helps keep debris out.

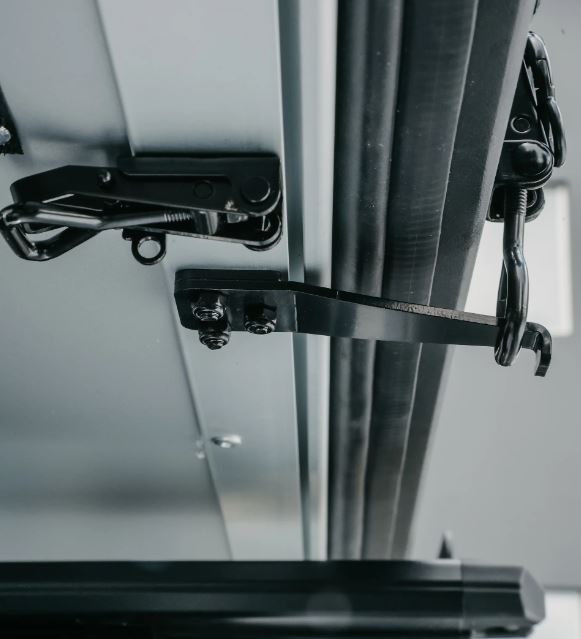

Premium Stainless Steel Gas Struts and Hinges: Providing durability and reliable operation.
Patent: US-11753844-B2

Armourdillo® Warranty
For 24 months from the date of purchase our products are fully warrantied with proof of purchase to the original owner against major defects in material and workmanship.

This warranty does not cover general wear and tear.

If you believe your product has a fault/defect from manufacturing, please email us with your order number along with photos and a description of the defect.

30 Day Return Policy
Our 30-day standard return policy applies, Start the process

We accept returns of unused goods in brand new condition with packaging intact within 30 days of purchase. If your item(s) meet all the return criteria, a refund will be applied. Please note that customers are responsible for return shipping costs.

Refunds on returns will be given only on the purchase price (shipping and handling are non-refundable, and all refunds are subject to an admin & service fee)

Disclaimer
Please check the weight rating of your roof racks is rated to at least 100kg.

Bushbuck Club Members: you will get 1 point for every $1 you spend at Bushbuck, except for when you purchase an Armourdillo Roof Top Tent. For every Armourdillo Roof Top tent that you purchase you will be awarded 1,000 points (these points need to be manually applied and will not come through instantly).

Care instructions;

Spot clean dirt, stains, or mould with a mild detergent in warm water.

Give the shell a clean whenever you wash your vehicle.

Re-apply waterproof treatment to the tent fabric every year or two.
